Wall layered panels are used especially in indoor, industrial and public construction (shopping centers, warehouse centers, sports halls, etc.). In addition to the cover walls, the plates are used as: partition walls and as load -bearing walls in small transportable cold stores, in buildings of construction and in farm buildings.
The rich color palette and the diverse shape of disc profiling enables the implementation of a number of interesting objects. The plates can be mounted both vertically and horizontally.
Pruszyński Company guarantess realization of each order in one colour shade. Although due to technological process of covering paint to steel shets there is possibility for occuring difference in colour shade in different deliveries.
Regarding this please inform sales person if different delivery is continuation of previous orders.
In order to ensure color consistency of sandwich panels with other elements such as flashings, they should it ordered from one supplier.

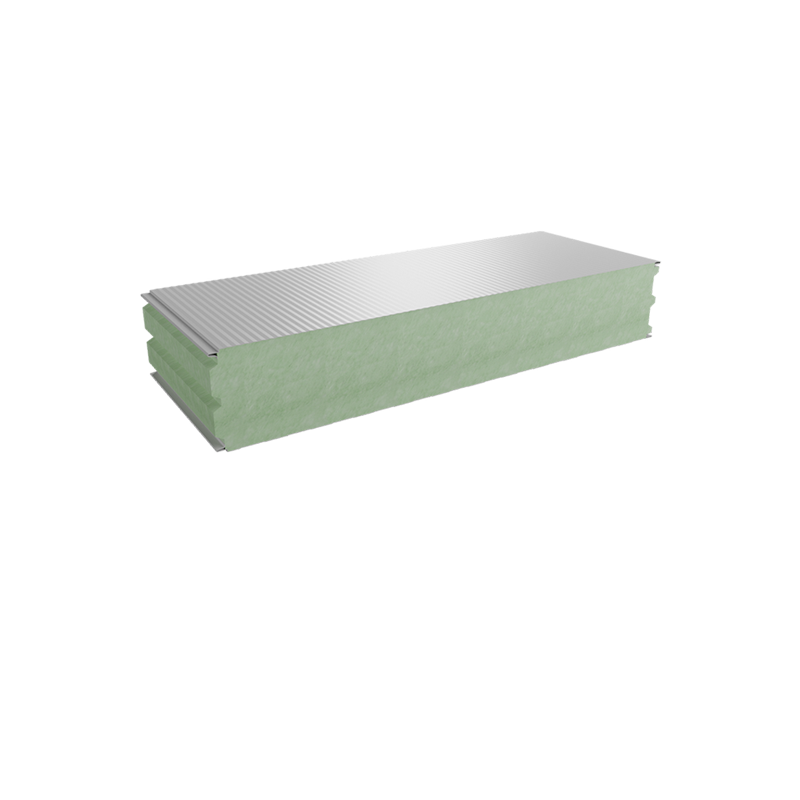

The PWS2 -MW layered plate is a new, improved generation of our product -rated product - a layered plate with a core of mineral wool. A product accident intended for wall mounting, our offer includes two variants - a plate with a visible lock and a plate with a hidden lock.Basic features of the product, wall plate, layered with a core of mineral wool, with a visible lock, 80 mm thick and a density of 115 kg / m3: M
The table below has a classification divided into color groups for individual colors available in the assortment of Pruszyński Sp. z o.o permissible panel lengths depending on the color of the cladding (minimum length - 2.5 MB) for single -span systems.
18 m wall / 18 m roof
12 m wall / 12 m roof
9 m wall / 9 m roof
ATTENTION- III group – dark colours
Taking in consideration that dark colours from group III has much bigger thermal load and very bright and bright colours from groups I and II, there should be paid special attention during projecting and below conditions are complained:
* For panels with dark colours recommended are single-span schemes; in other case there may occur non-acceptable by Investor strains on external claddings on panels on intermediate supports. Flutings which may occur, complain with norm PN EN 14509 due to acceptable deviation, but may be topic of complaints.
** Maximum length of panels should be in accordance of producer’s guidelines due to type and use of panels – see LENGTH OF PANELS
*** Assembly of panels with dark colours is possible within temperatures 10oC to 35oC. This condition is essential and must be strictly observed.
Assembly of panels in very bright and bright colours is possible within range of temperatures from +5oC to +35oC
Recommended ways of transport for sandwich panels:
Sandwich panels should be storage maximum 2 packages one on another.
In below chart you can see what is maximal quantity of panels in one package.
| thickness of panels | PWS |
|---|---|
| 60 mm | 18pcs. |
| 80 mm | 14pcs. |
| 100 mm | 11pcs. |
| 120 mm | 9pcs. |
| 150 mm | 7pcs. |
All packages should be storage on flat surface with possibility to discharging water.
ATTENTION !!!
In order to extend durability of roofs and elevations it’s recommended to check and conservative it.
Preparation of surface to painting should be done with generally accepted rules. It is necessary to precisely remove all signs of corrosion – best with special brush or close-grained sandpaper. Then that surface should be undusted, degreased and cleaned. To degrease extraction naptha or water with addition of surfactant(best with 1-2%solution of ammoniac) can be used. Repaired spots may be different in colour compared to original steel sheets because of natural impact of atmospheric phenomenon (ageing of varnish due to impact of UV radiation)
ATTENTION!
Pruszyński Sp. z o.o. is not in charge of possible accidents during carrying out all following actions.
