RUBIN roof tile
Rubin - Custom -made metal roof tile
Technical specification
General information
length of module:
350 or 400 mm
height of bending:
15 lub 20 mm
height of profile:
20 mm
effective width:
1150 mm
total width:
sheet thickness
max. recommended length of sheet:
for module 350 – 5000 mmfor module 400 – 5300 mm
min. length of sheet:
for module 350 – 800 mmfor module 400 – 900 mm
min. slope of roof:
9°
Length of full module sheets
| Number of modules | length of sheet – RUBIN 350/15 | length of sheet – RUBIN 400/20 |
|---|---|---|
| 2 | 0,8 | 0,9 |
| 3 | 1,15 | 1,3 |
| 4 | 1,5 | 1,7 |
| 5 | 1,85 | 2,1 |
| 6 | 2,2 | 2,5 |
| 7 | 2,55 | 2,9 |
| 8 | 2,9 | 3,3 |
| 9 | 3,25 | 3,7 |
| 10 | 3,6 | 4,1 |
| 11 | 3,95 | 4,5 |
| 12 | 4,3 | 4,9 |
| 13 | 4,65 | 5,30* |
| 14 | 5,00* | 4,7 |
| 15 | 5,35 | 6,1 |
| 16 | 5,7 | 6,5 |
| 17 | 6,05 | 6,9 |
| 18 | 6,4 | 7,3 |
| 19 | 6,75 | 7,7 |
| 20 | 7,1 | 8,1 |
* – maximum recommended sheet length
Recommendations
Transport and storage
- If the customer collects the product with his own means of transport, the vehicle shall have an open loading platform allowing for easy loading and unloading, with the length suitable for ordered sheets. The sheets shall not extend beyond the platform. Proper anchoring of the sheet packages for the transport will reduce the damage of the sheet paint coat due to abrasion.
- It is of course the best to unload in original manufacturer packaging , using mechanical unloading equipment.
- Unloading shall be carried out by the proper number of people, that is in the case of long sheets (ca. 6 linear metre) the sheets shall be unloaded by 6 people, three on each side. Special attention shall be paid not to friction one sheet against the other, bend the side edges or stretch the sheet. Steel sheet deformation during the unloading and moving can result in problems with proper installation (chinks in clamps).
- Protective foil is used to safe the roof panels against mechanical damages. It should be removed directly at the assembly stage and it should protect panels against humidity and sun during the storage period. Non compliance with above rules may cause difficulties when removing the foil from sheets and dirty after the glue.
- If the customer collects the product with his own means of transport, the vehicle shall have an open loading platform allowing for easy loading and unloading, with the length suitable for ordered sheets. The sheets shall not extend beyond the platform. Proper anchoring of the sheet packages for the transport will reduce the damage of the sheet paint coat due to abrasion.
- It is of course the best to unload in original manufacturer packaging , using mechanical unloading equipment.
- Unloading shall be carried out by the proper number of people, that is in the case of long sheets (ca. 6 linear metre) the sheets shall be unloaded by 6 people, three on each side. Special attention shall be paid not to friction one sheet against the other, bend the side edges or stretch the sheet. Steel sheet deformation during the unloading and moving can result in problems with proper installation (chinks in clamps).
- Protective foil is used to safe the roof panels against mechanical damages. It should be removed directly at the assembly stage and it should protect panels against humidity and sun during the storage period. Non compliance with above rules may cause difficulties when removing the foil from sheets and dirty after the glue.
Maintenance and washing
- In order to extend durability of roofs and elevations it’s recommended to check and conservative it.
- Inspection – One time a year (it’s best in spring) there should be inspection of roof/elevation in order to early detection of possible damage.
- Cleaning of steel sheet – Roof and elevation made of steel sheets require cleaning at least once a year. Stratifying dirt on steel sheet may cause uneven discoloration of lacquer (because of uneven impact of UV beams), and lower protection to corrosion(dust traps humidity on steel sheets which causes damage). Dirty and stained spots can be cleaned by soft brush and water (temp. max. 60c). If it is necessary it is permitted to use some light detergent (ph 6/7, max 10% solution). There also can be used pressed water(max. 100bar) to cleaning, however the beam of water cannot be applicated too near of surface of sheets(min. 30 cm), also it shouldn’t be perpendicularly to surface. Near the connections water beam should be directed to bottom, to avoid water of entering cracks near connections. With old surfaces of steel sheets we should deal with high cautiously. Cleaning should be conducted from top to bottom, and cleaned spots should be rinsed out immediately.
- It is not permitted to use scouring powders, nitro solvent, chlorine liquor, aromatised substances, substances with Amon chloride or sodium.
- Damages – Possible damages during guarantee should be consulted with Contractor of roof/elevation and can be repaired only with his written permission.Repair of damages on small surfaces is done with quick-drying varnish. However painting big surfaces should be done with special industrial paints to renovating coverings. Painting should be limited only to special damaged spots (scratches to steel, centres of corrosion etc.)Preparation of surface to painting should be done with generally accepted rules. It is necessary to precisely remove all signs of corrosion – best with special brush or close-grained sandpaper. Then that surface should be undusted, degreased and cleaned. To degrease extraction naptha or water with addition of surfactant(best with 1-2%solution of ammoniac) can be used. Repaired spots may be different in colour compared to original steel sheets because of natural impact of atmospheric phenomenon (ageing of varnish due to impact of UV radiation)
- ATTENTION!– During inspecting, cleaning, conservation and repair all work safety regulations should be obeyed.Pruszyński Sp. z o.o. is not in charge of possible accidents during carrying out all following actions.
- In order to extend durability of roofs and elevations it’s recommended to check and conservative it.
- Inspection – One time a year (it’s best in spring) there should be inspection of roof/elevation in order to early detection of possible damage.
- Cleaning of steel sheet – Roof and elevation made of steel sheets require cleaning at least once a year. Stratifying dirt on steel sheet may cause uneven discoloration of lacquer (because of uneven impact of UV beams), and lower protection to corrosion(dust traps humidity on steel sheets which causes damage). Dirty and stained spots can be cleaned by soft brush and water (temp. max. 60c). If it is necessary it is permitted to use some light detergent (ph 6/7, max 10% solution). There also can be used pressed water(max. 100bar) to cleaning, however the beam of water cannot be applicated too near of surface of sheets(min. 30 cm), also it shouldn’t be perpendicularly to surface. Near the connections water beam should be directed to bottom, to avoid water of entering cracks near connections. With old surfaces of steel sheets we should deal with high cautiously. Cleaning should be conducted from top to bottom, and cleaned spots should be rinsed out immediately.
- It is not permitted to use scouring powders, nitro solvent, chlorine liquor, aromatised substances, substances with Amon chloride or sodium.
- Damages – Possible damages during guarantee should be consulted with Contractor of roof/elevation and can be repaired only with his written permission.Repair of damages on small surfaces is done with quick-drying varnish. However painting big surfaces should be done with special industrial paints to renovating coverings. Painting should be limited only to special damaged spots (scratches to steel, centres of corrosion etc.)Preparation of surface to painting should be done with generally accepted rules. It is necessary to precisely remove all signs of corrosion – best with special brush or close-grained sandpaper. Then that surface should be undusted, degreased and cleaned. To degrease extraction naptha or water with addition of surfactant(best with 1-2%solution of ammoniac) can be used. Repaired spots may be different in colour compared to original steel sheets because of natural impact of atmospheric phenomenon (ageing of varnish due to impact of UV radiation)
- ATTENTION!– During inspecting, cleaning, conservation and repair all work safety regulations should be obeyed.Pruszyński Sp. z o.o. is not in charge of possible accidents during carrying out all following actions.
PURMATpolyurethane, matt
Technical specification of the coating
Thickness of coating
50 µm
Corrosion resistance
High ★★★★
UV resistance
High ★★★★
Possibility of bending
High ★★★☆
Warranty
Up to 30/50 years
Available colours
0.5 mm
PUM R011
PUM R028
PUM R033
PUM R750
PUM RAL 7016
PUM RAL 8017
PURLAKpolyurethane, glossy
Technical specification of the coating
Thickness of coating
50 µm
Corrosion resistance
High ★★★★
UV resistance
High ★★★☆
Possibility of bending
High ★★★☆
Warranty
up to 30/50 years
Available colours
0.5 mm
PU RAL 7016
PU RAL 9005
ULTRAMAT®poliyester, matt (Arcelor PL)
Technical specification of the coating
Thickness of coating
35 µm
Corrosion resistance
High ★★★☆
UV resistance
Good ★★☆☆
Possibility of bending
Good ★★☆☆
Warranty
15/35 years
Available colours
0.5 mm
PMG R011
PMG R028
PMG R032
PMG R033
PMG R750
PMG RAL 7016
PMG RAL 8017
PMG35®poliyester, matt
Technical specification of the coating
Thickness of coating
35 µm
Corrosion resistance
High ★★★☆
UV resistance
High ★★☆☆
Possibility of bending
Good ★★☆☆
Warranty
15/35 years
Available colours
PMG R011
PMG R028
PMG R032
PMG R033
PMG R750
PMG RAL 7016
PMG RAL 8017
PS25poliyester, glossy
Technical specification of the coating
Thickness of coating
25 µm
Corrosion resistance
High ★★★☆
UV resistance
Good ★★☆☆
Possibility of bending
Good ★★☆☆
Appearance warranty
10 years
Warranty
30 years
Available colours
R028
R032
RAL 1002
RAL 1015
RAL 1021
RAL 3000
RAL 3005
RAL 3016
RAL 5010
RAL 6005
RAL 6029
RAL 7000
RAL 7016
RAL 7024
RAL 7035
RAL 8004
RAL 8017
RAL 9002
RAL 9005
RAL 9006
SILVER
SILVER
RAL 9007
SILVER METALLIC
SILVER METALLIC
RAL 9010
Special coloursother
Technical specification of the coating
Special colours
A special range of colors with non-standard appearance or composition. Please verify color availability for your specific coating and check the price before placing an order.
Available colours
RAL 8023
COPPER
COPPER
Golden Oak
Dark Walnut
Product description
Roofing tile with character
The shape of the metal roof tile from beginning to end developed by Pruszyński Sp z o.o. taking into account the sufficiently high aesthetic values while maintaining excellent functional parameters – the width of the sheet is 1150 mm !!!
Tags

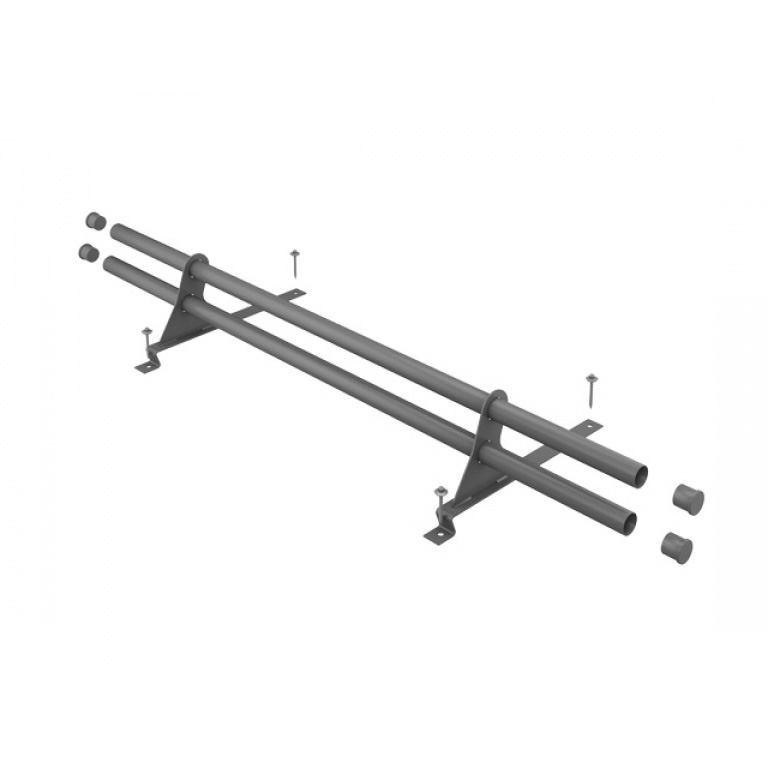

See our offer of accessories
